Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

  • 1
  • 2

Warranty : 1year

Customized support : OEM

Brand Name : Huiyu

Model Number : BT100F-1A

Place of Origin : Beijing, China

Application : Food and Beverage Industry

Horsepower : 0.03

Power Source : Electric

Pressure : 0.2map, Low Pressure

Structure : reciprocal

Cable Length : 1.5m

Outlet Size : 6.4mm

Voltage : 110v 220v

Power : 30w, Electric

product : Electronic liquid filling machine

Brand : Huiyu

flow rate : 0.07-380ml/min

power supply : AC 220V ±20%

motor speed : 0.1-100rpm

dimension(LxWxH) : 243X151X157 (mm)

Drive weight : 3.5 kg

Certification : ce

Packaging Details : Electronic liquid filling machine
with foam plastic

Port : Beijing,Tianjin,Qingdao

Supply Ability : 100 Set/Sets per Week

Price : $350.00/sets >=1 sets

Contact Now


Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump

Product Description

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Max flow rate:380ml/min

Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC,50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31

Technical Data Sheet

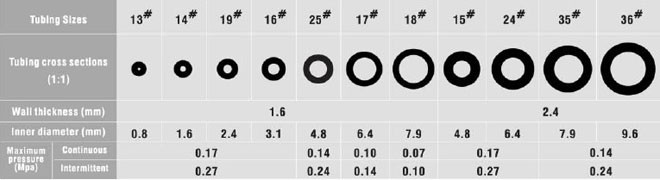

Pump head model Available tubing flow rate range (ml/min)
YZ15-1A 13#,14#,19#,16#,25#,17#,18# wall thickness 1.5mm 0.07-380ml/min
YZ25-1A 15#,24# wall thickness 2.5mm 0.2-270ml/min
DG-1A
ID≤3.17mm;
wall thickness 0.8-1.0mm;
A Refers to 6 rollers;
B refers to 10 rollers		 0.00025-48ml/min
DG-1B 0.0002-32ml/min
DG-2A 0.00025-48ml/min Single channel
DG-2B 0.0002-32ml/min Single channel
DG-4A 0.00025-48ml/min Single channel
DG-4B 0.0002-32ml/min Single channel

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedalSemi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Operation video link on Youtube for reference:

https://youtu.be/y6sA2m8JKAE

Best selling standard perisaltic pump BT100J+YZ15

Click the photo for technical details

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Industrial perisaltic pump BT600J+YZ35

Click the photo for technical details

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Laboratory syringe pump LST01-1A

click the photo for technical details

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Micro plunger pump

click the photo for technical details

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

silicone tube

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Packaging & Shipping

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Special designed carton and foam plastic cushion

Professional bundling machine ensure safe delivery to customers directly .

These precise instruments are mainly delivered by Express like DHL FedEx etc.

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Suitable pump head

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

OEM option

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Accessories

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

CE certificate

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal

Semi Automatic Filling machine Time quantitative medium dispensing Peristaltic Pump with hand dispenser or foot pedal
